| Brand Name : | FIBERROAD |
| Model Number : | FR8000-TMUX8GDX |
| Certification : | CE,FCC, ROHS |
| Price : | EXW. SHENZHEN IN USD |
| Delivery Time : | 3-5days |
Product Introduction
The Lambda FR8000-TMUX8GDX Muxponders use advanced TDM technology to transport 8 separate Gigabit Ethernet data streams into a 10 Gbps XFP-based trunk port. This solution provides significant cost reduction and excellent fiber utilization when compared to discrete optical multiplexing. The FR8000-TMUX8 incorporates 8 SFP-based access interfaces that can accommodate various types of SFP. The trunk port is an XFP 10Gbps permitting flexible connectivity options between the muxponders either in a WDM system or directly between two modules.as well as provide double XFP interfaces, which can Achieve 1 +1 protective,Enhance the security of the system
Features
10 Gbps trunk port rate
It provides 8 standard SFP slots and 2 XFP slot;
The trunk port can provide double XFP interfaces, which can Achieve 1 +1 protective,Enhance the security of the system
8 GE ports at the client side are isolated from each other; Point-to-Point interconnection of up to 8 LANs 8 Independent 1GE services over one DWDM wavelength It supports loopback setting of the client side and the line side;
Advanced network management features:
support for SNMP-based network management
supporting CLI, WEB, TELNET and other network management approach, Full graphical managemen
FR8000 chassis compatibility
Fit FR8000-CH01 1-slot powered chassis
Fit FR8000-CH08 8-slot powered chassis
Fit FR8000-CH16 16-slot powered chassis
Performance Parameters
| System parameters | Technical indicators | |
| Center wavelength | Compliance with ITU-I standard | |
| Data Rate (Gbps) | Client Side: 100M/1000BaseFX,100/1000BaseTX Line Side:10.3Gbps | |
| Optical interface type | Client Side:8xSFP Line Side:2xXFP | |
| NMS | TELNET,SNMP,WEB | |
Size | OTU Module | 26.5(W)× 195(H)× 252(D) |
| 1-slot chassis | 482.6(W)x350(D)x43.6(H) | |
| 8-slot chassis | 482.6(W)x360(D)x109(H) | |
| 16-slot chassis | 482.6(W)x360(D)x261.6(H) | |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ | |
| Relative humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤15W | |

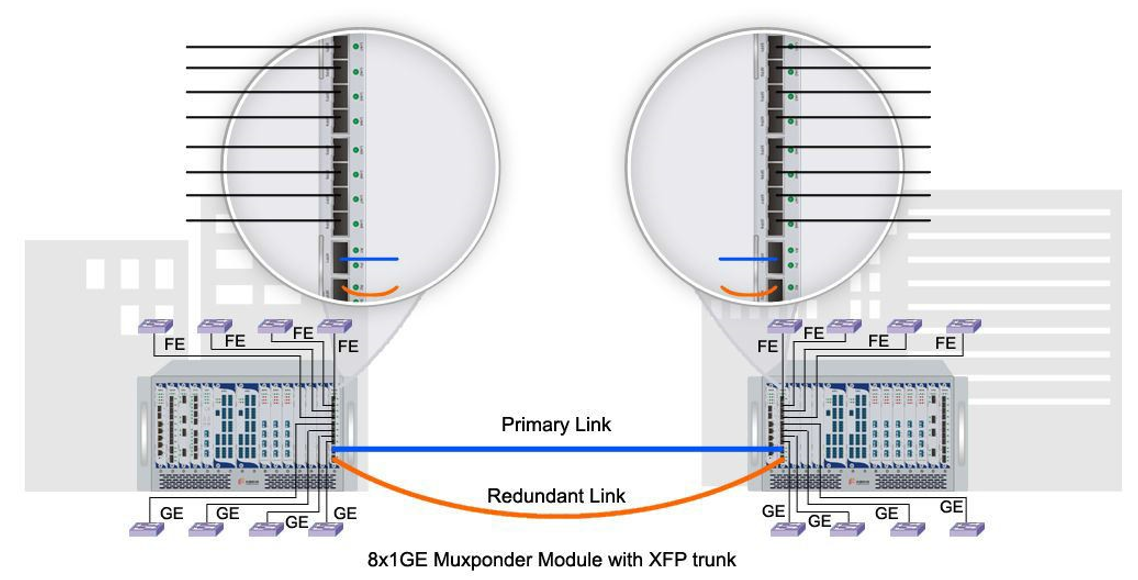

Application
| Model | Function /Protocols | Client | line |
| FR8000-TMUX8GDX | 8 x GE (SFP) TDM module with Dual XFP line port, Line-side 1 + 1 redundancy protection | SFP x8 | XFP x2 |
|
|
