Product Introduction

It performs monitoring and control of the FR8000 chassis and modules. The Management module is a multiport Ethernet Switch Router functioning as an SNMP agent and reporting to a central NMS. Accordingly, the management module can be remotely accessed by any SNMP NMS either in-band or out-of-band in a switched or routed topology.

With its Linux-based system software and state-of-the-art hardware design, the management module provides many advanced features and delivers an exceptional level of performance, including extensive setup and control of the full range of FR8000 products.

Product Features

Advanced Optical Service Channel (OSC) protocol

fast and reliable link failover protection

Point-to-point (P2P)

WDM ring

SFP interfaces Single-span support 40dB loss

Cluster Discovery Protocol – access every shelf in a WDM cluster from any shelf without the need for a static network map or address table

Alarm Management

The current alarm query and display

Historical alarm information query and display

Alarm reporting shield

Alarm Display Filter

Alarm acknowledgment

Alarm Severity Table Management

Voice alarms, e-mail alerts, SMS alerts

Mobile Client Management

Security

Linux operating system, open source advanced management methods

High security management environment

Multiple users can concurrently access, without compromising overall security.

Support online upgrade,Future module upgrades are installed easily through remote firmware and programmable logic microcode downloads.

Multiple management modes

SNMPv1,SNMPv2,Web,Telnet Etc. secure remote in-band management mode

Out-of-band CLI management

Graphical User Interface (GUI) management

Complete Java-based embedded management GUI

Fully graphical interface management

Realistic simulation of the actual network topology of the whole network, real-time reflection of the whole network running, the whole network running at a glance

Device panel view, the view interfaces, LED lights, and other information with the device actually consistent view of the panel, easy management, device status at a glance.

Supports manual and automatic topology discovery topology rendering, and can be modified topology attribute

Support electronic map downloads

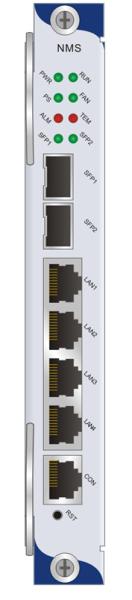

Multiple front panel ports for management access

One RS-232 port provides local out-of-band serial access

Four 10/100Base-TX management interface port with auto negotiation and auto MDI/MDIX – easy integration into existing Ethernet networks, provide in-band access remotely from any network workstation.

Dual 100Base-FX SFP-based interfaces – easy integration into ‘gray’ or CWDM/DWDM optical networks, able to direct East-West WDM ring OSC , provide in-band access remotely from any network workstation.

One E1 management interface port – easy integration into existing PDH/SDH networks, provide in-band access remotely from any network workstation.

Extensive management features

FR8000 chassis, module, and port management

Secure end-to-end network management

Installed module types ,Link status,

Optical performance monitoring (including OSNR monitoring )

Fully supports Digital Diagnostics information

Monitors the devices’ operating temperature, power supply status, fan status

Remote laser shutoff and remote module reset

Enables loop-back functionality for troubleshooting

Configuration of data rate and wavelength selection as well as other module

specific parameter settings.

SNMP traps Settings,

Syslog – automatic logging of system events

Editable ASCII configuration files – easily create, edit,and save configuration settings

System configuration TFTP upload and download – save configurations on remote servers for easy retrieval and restoration

Remote configuration and software maintenance - System configuration FTP upload/download with easy- to-use editable ASCII configuration files
