    16x10/100/1000Base-TX to 2xGigabit SFP Fiber Switch With PoE in optional, With Dip Switch

    Ask Lasest Price
    Brand Name : FIBERROAD
    Model Number : FR-5N3216P-SFP
    Certification : CE,FCC.ROHS
    Price : Exw. Shenzhen
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    16x10/100/1000Base-TX to 2xGigabit SFP Fiber Switch With PoE in optional, With Dip Switch

    Brief Introduction


    FR-5N3216-P is a new generation Power over Ethernet switch with 16-Port 10/100/1000Base-TX and 2 Gigabit SFP that

    provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission

    with efficient bandwidth and reliable fiber optic network solutions for users.


    Features


    > 16x10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ 16xPoE

    > AI Extend: Extend 250M transmission

    > AI QoS: Video data first, more fluent transmission

    > AI VLAN: Avoid the internet storm and enhance the network ability

    > AI PoE: Automatic self checking, reboot the device while find it fake dead

    > Support Auto-MDIX, and full/half duplex self-negotiation mode

    > Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

    > Support 10K bytes giant frame, compatible with various extension protocol

    > 8K MAC address table

    > Support IEEE802.3az energy efficient Ethernet technology

    > Support IPv6 Protocol

    > Electric 4KV surge protection

    > Complete status indicator, working state at a glance

    > 1U rack-mount type


    Specification


    Physical Port
    RJ45 Port and Speed16x10/100/1000Base-TX
    Fiber Port and Speed2xGigabit SFP
    Parameters

    Ethernet Standards

    IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
    Packet Buffer4M
    Maximum Packet LengthUp to 10K
    MAC Address Table8K
    Transmission ModeStore and Forward (full/half duplex mode)
    Exchange Property

    Delay time: < 7μs

    Backplane bandwidth: 56Gbps; Packet forwarding rate: 47.616Mpps

    PoE
    PoE Standard16x IEEE 802.3af/IEEE 802.3at PoE
    Power BudgetMax. PoE output power budget 30W
    PowerConnect-always
    RJ45Link/Act: connect-always; data exchange-twinkle
    FiberLink/Act: connect-always; data exchange-twinkle
    Power Information
    Redundant Power Input1*AC 100-240V 50/60Hz
    Power ConsumptionFull-load<15W (PoE Max 300W)
    Physical Property
    EnclosureMetal
    Dimensions440mm x 395mm x 45mm (L x W x H)
    Weight3.55kg (With PoE: 3.6kg)

    Operating Temperature0℃~50℃
    Operating Humidity5%~90% non-condensing
    Storage Temperature-10℃~70℃

    MTBF500,000 hours
    Defects Liability Period2 year warranty, lifetime technical support

    EMC

    FCC Part15 Class A CE-EMC/LVD

    RoHS

    EN61000-4-2 (ESD), EN61000-4-3 (RS) EN61000-4-4 (EFT), EN61000-4-5 (Surge) EN61000-4-6 (CS), EN61000-4-8 EN61000-4-11

    VibrationIEC60068-2-6

    Ordering Information:


    Model NumberPort Description
    FR-5N3216-SFP16 x 10/100/1000M Base-TX to 2 x Gigabit SFP Fiber Switch
    FR-5N3216P-SFP16 x 10/100/1000M Base-TX to 2 x Gigabit SFP PoE Fiber Switch / 16xPoE af/at

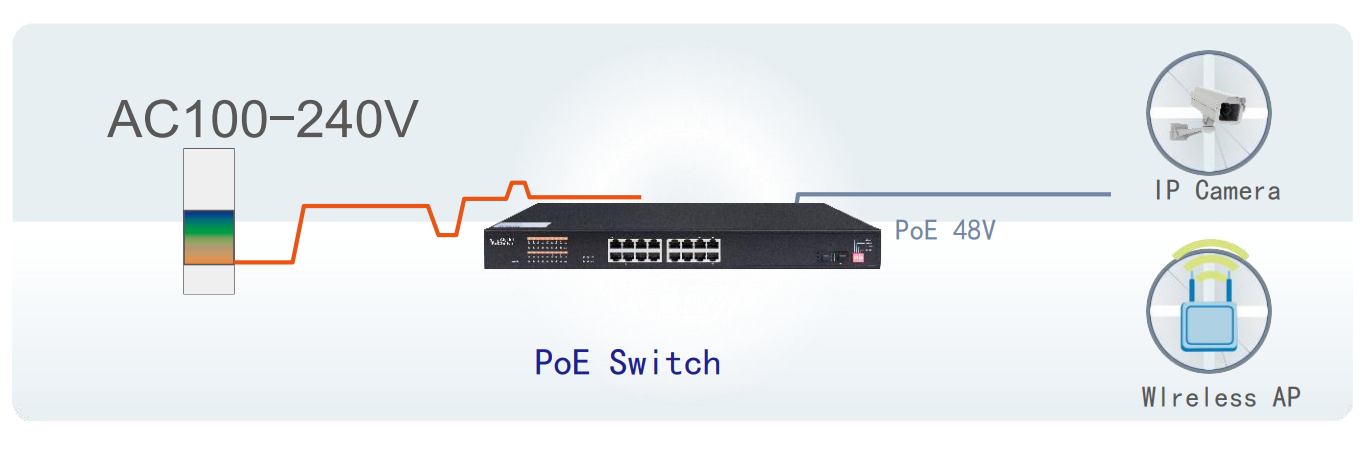

    Application:


    Quality 16x10/100/1000Base-TX to 2xGigabit SFP Fiber Switch With PoE in optional, With Dip Switch for sale
